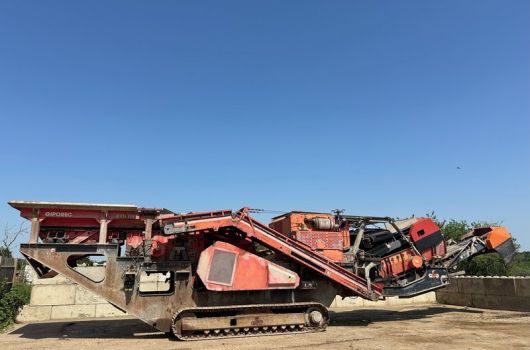

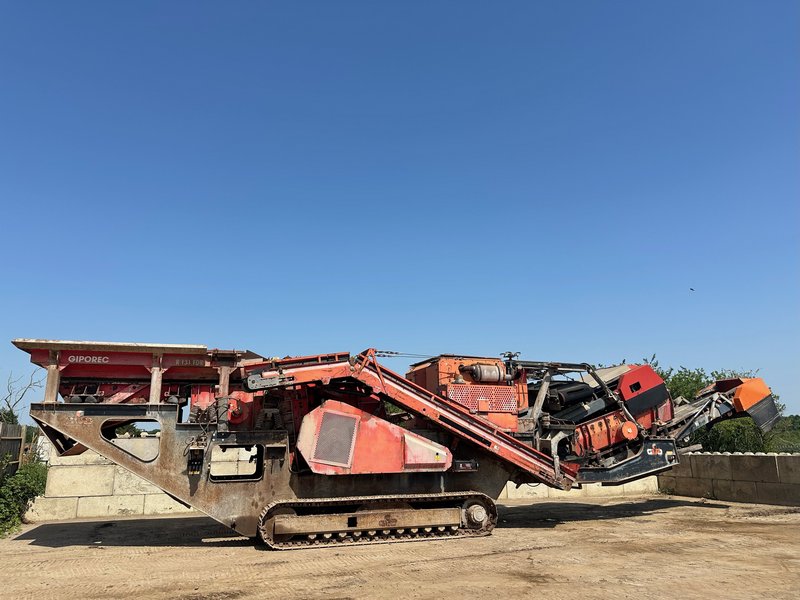

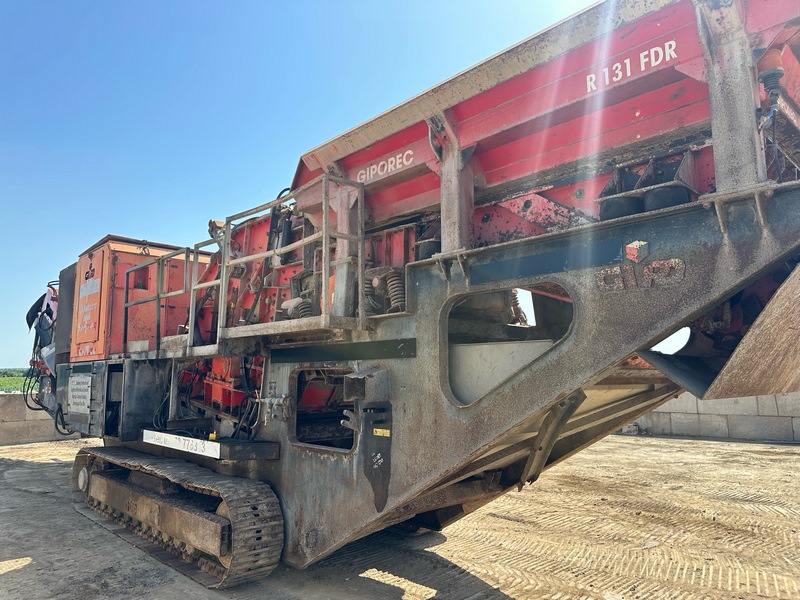

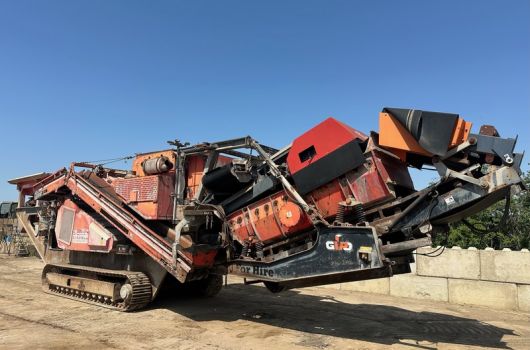

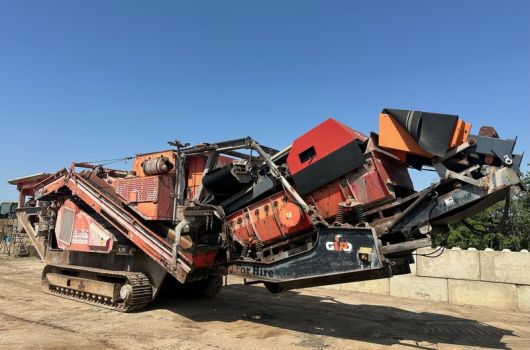

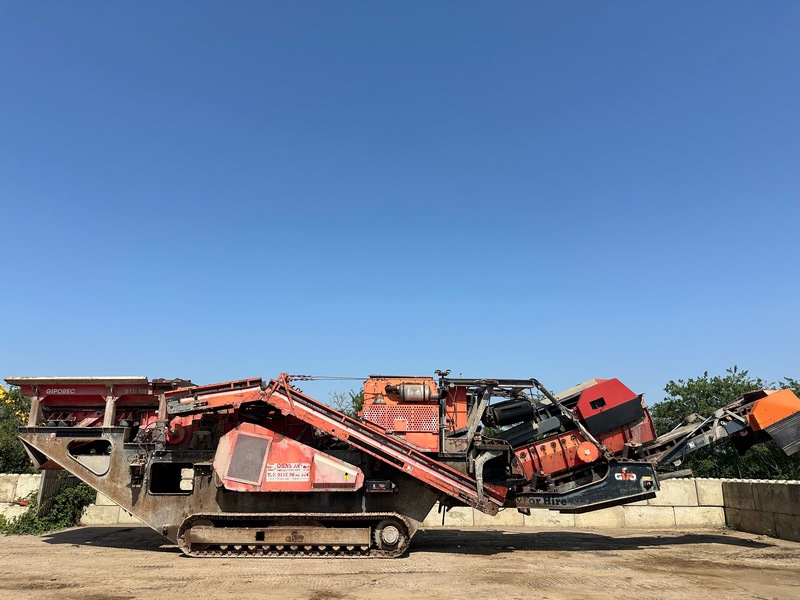

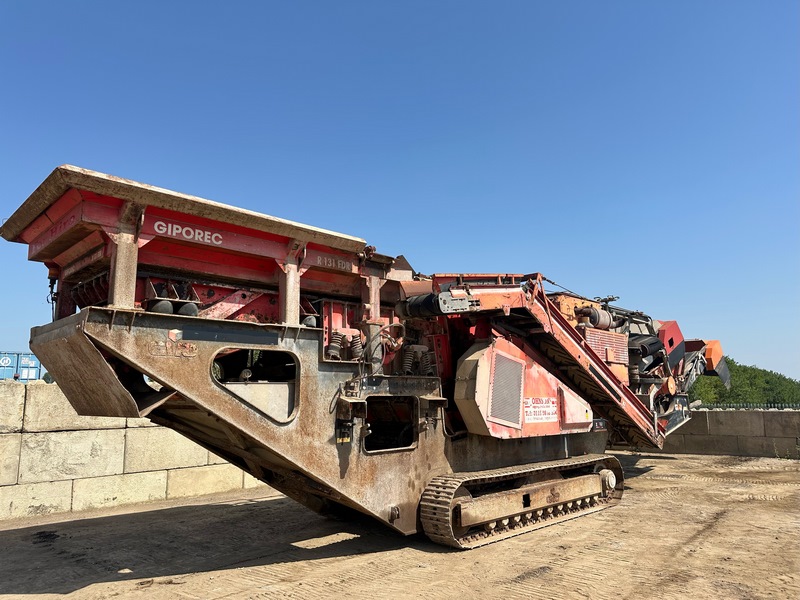

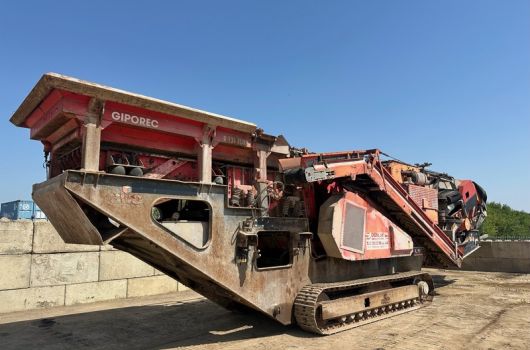

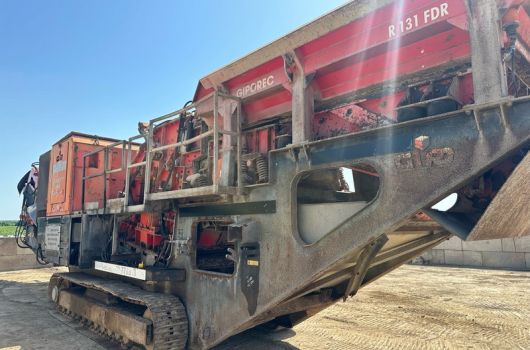

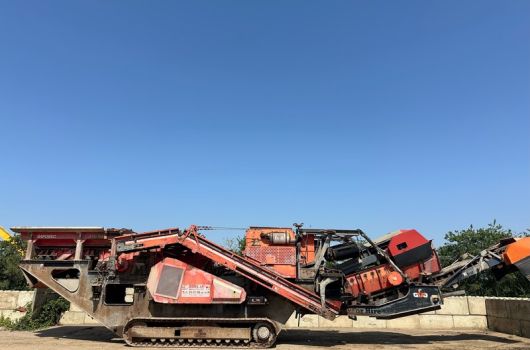

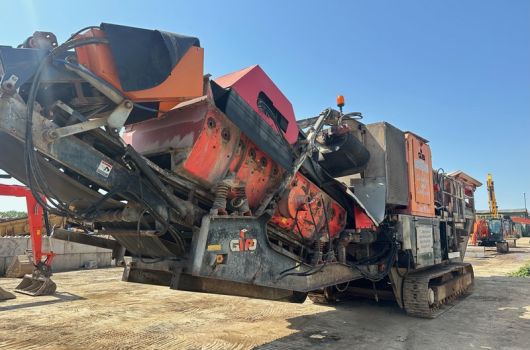

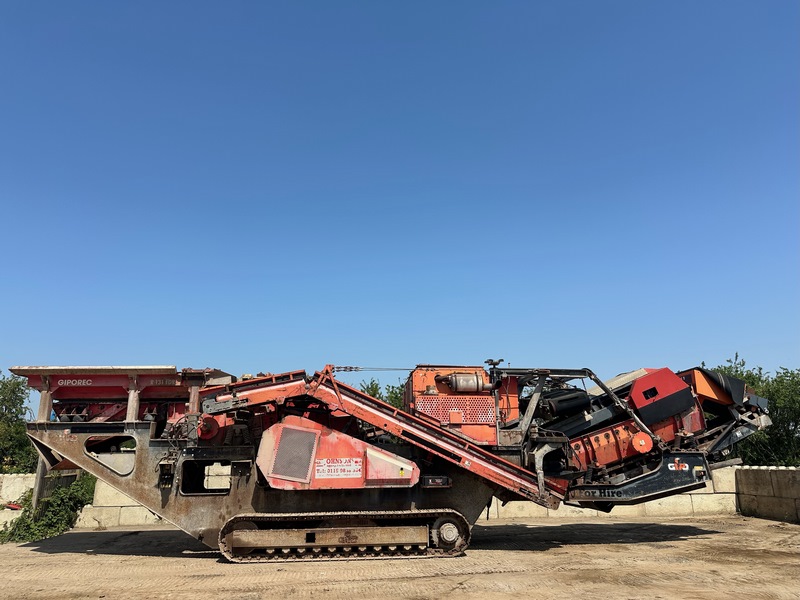

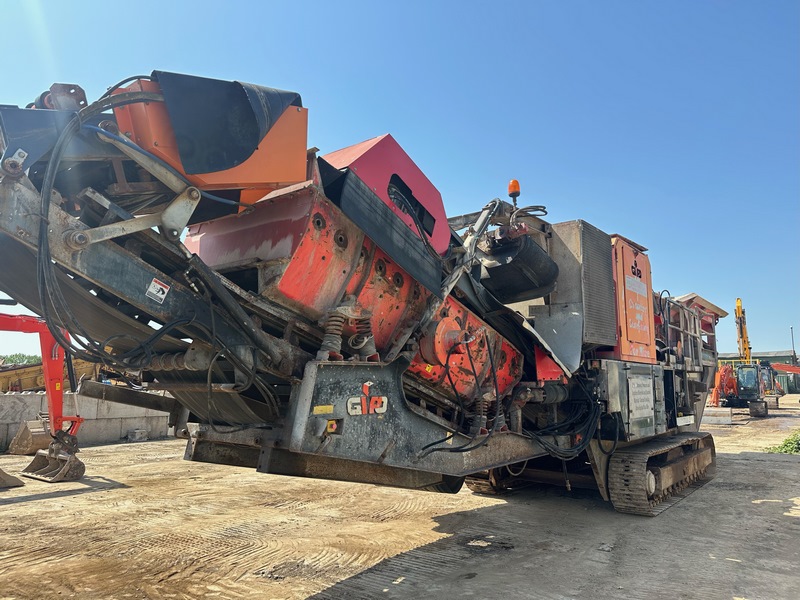

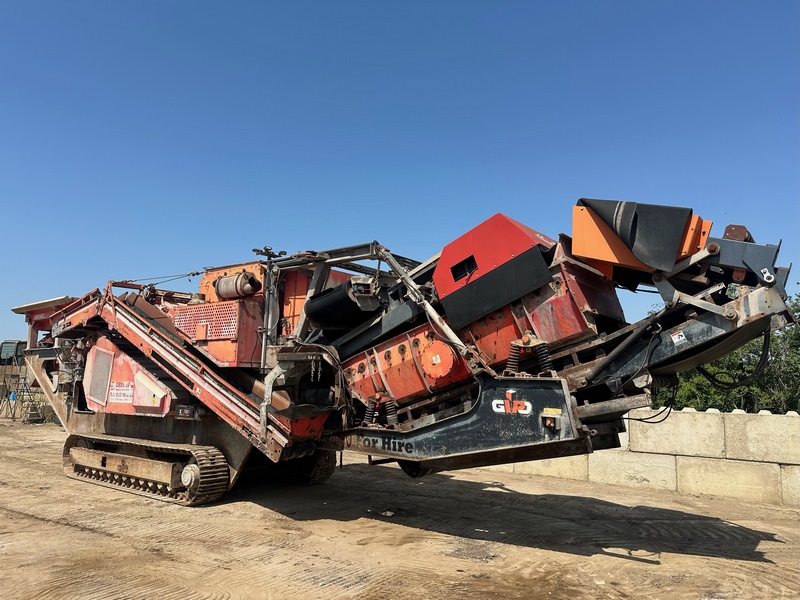

Gipo R131 FDR Impact crusher & screener

Gipo R131 FDR Information

Key Features

• Fully hydraulic transmission
• Simple reduction of transport weight by uncoupling the screening machine
• The screening unit can be coupled and uncoupled by one person without any assistance in lifting
• Robust impact crusher with two high-quality impactors and an optional grinding track
• High mobility – short set-up time – little space requirement
• User-friendly and service-friendly
• Simple troubleshooting due to easy access to components
• Simultaneous production of multiple high-quality, graded final products in natural stone, concrete and asphalt material size

Technical crusher features

The basic impact crusher model can be extended to meet customer requirements, and it can be operated and transported with or without screen unit. This further developed impact crusher can be used to screen crushed material so that a qualified product grain can be produced.

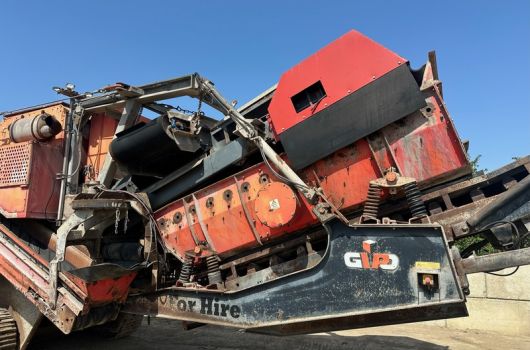

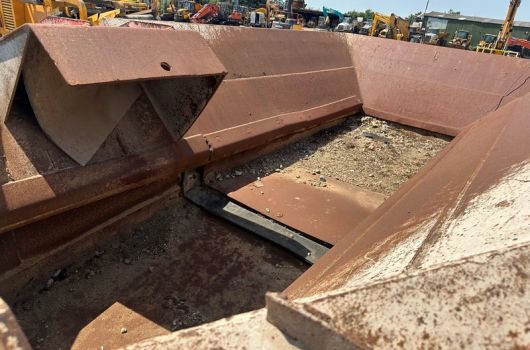

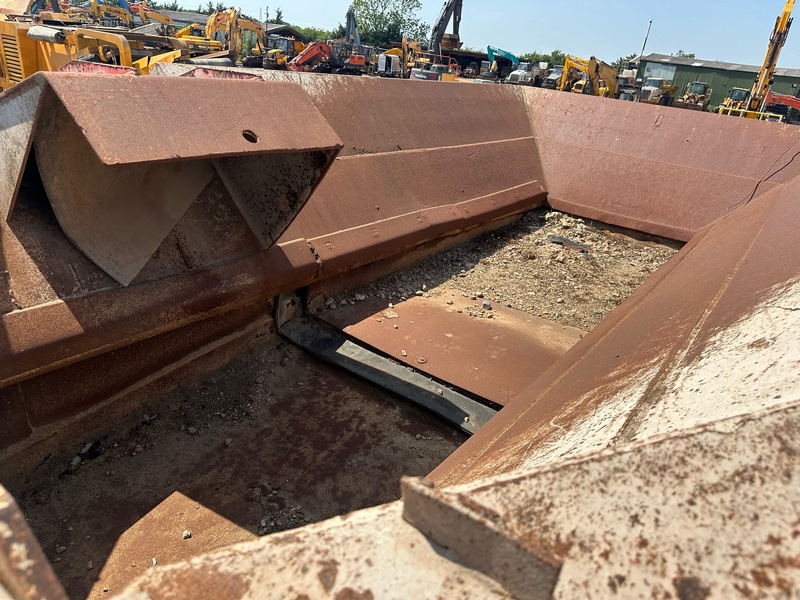

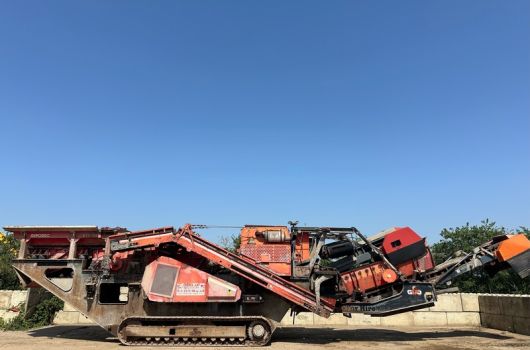

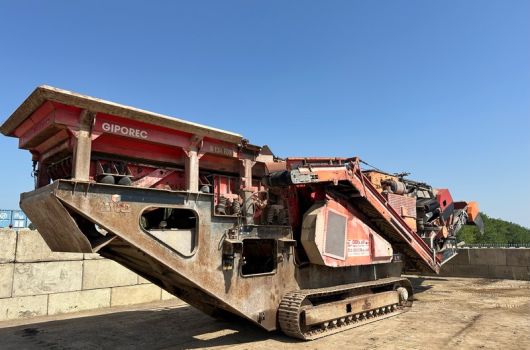

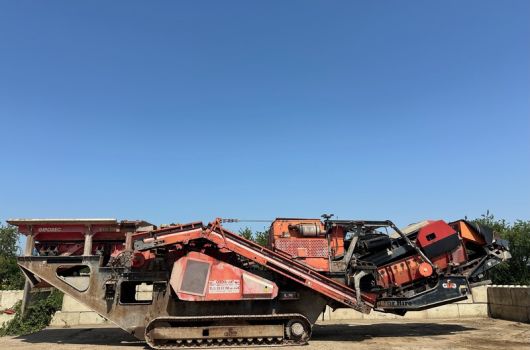

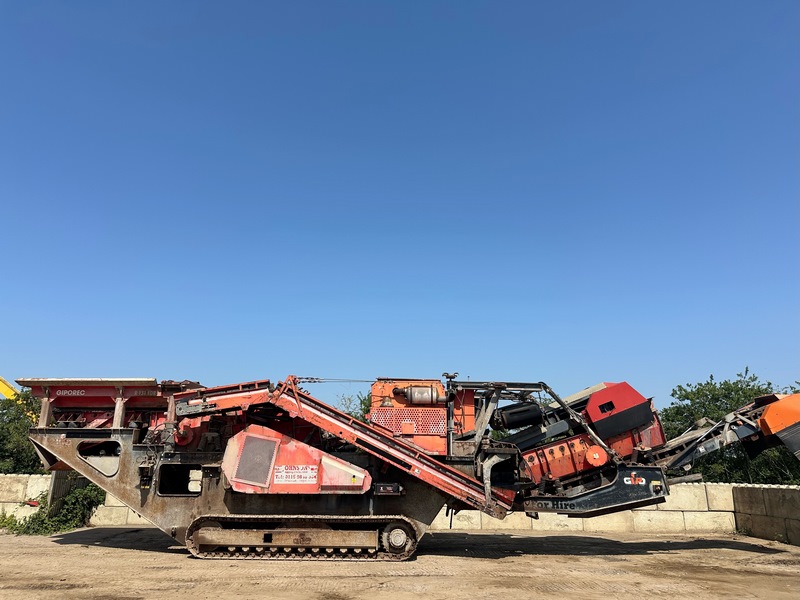

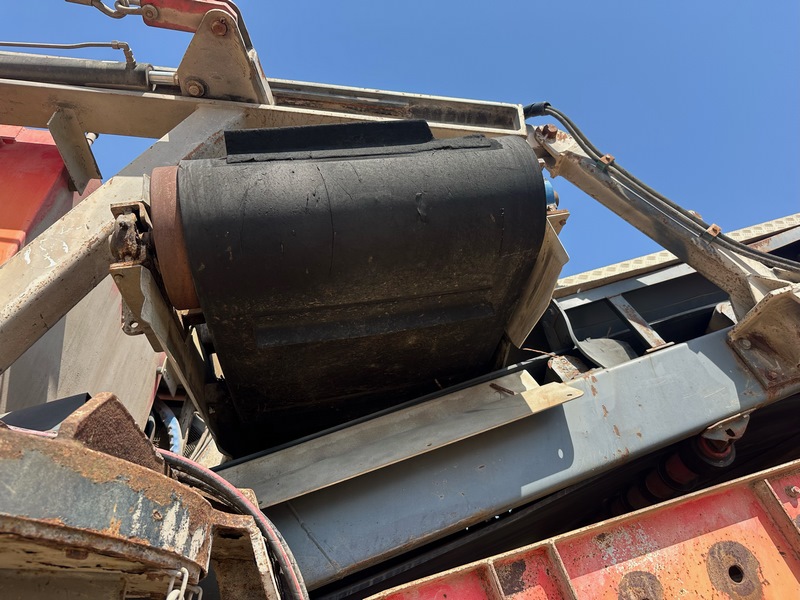

The GIPOREC R131 FDR GIGA special is equipped with the P131 impact crusher with two impact rockers, an adjustable feed inlet of 1270 x 920 mm and a rotor with an impact circuit diameter of 1200 mm. Further, the unit has a reinforced discharge trough, a 1400-mm-wide crusher discharge belt, iron discharge in the lengthways direction and a two-deck wet screen. The plant can be used for processing natural rock and recycling. Up to four product sizes can be produced in one crushing operation.

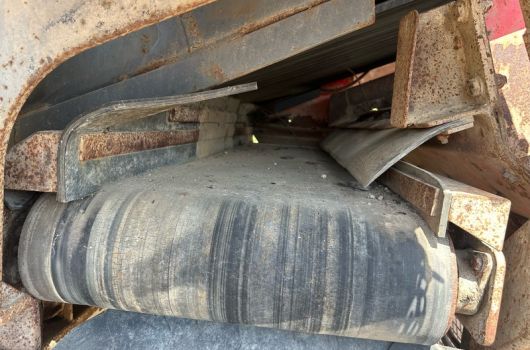

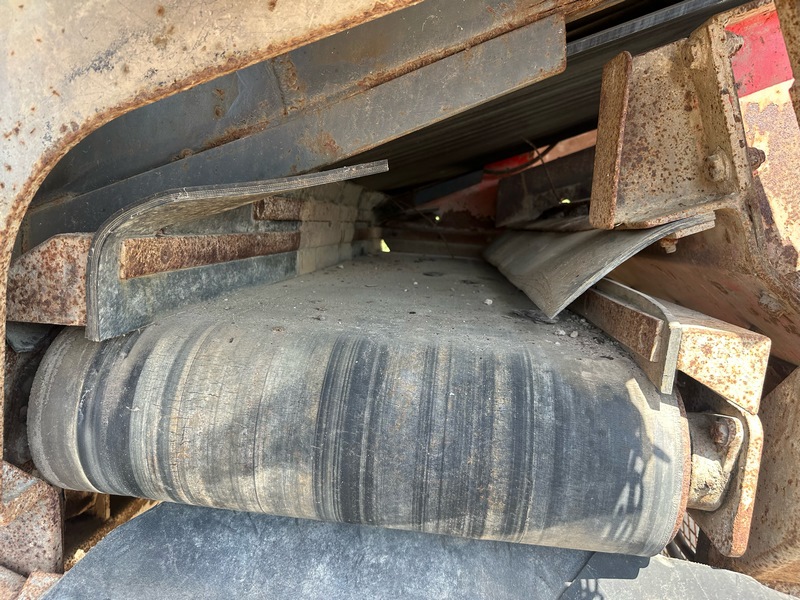

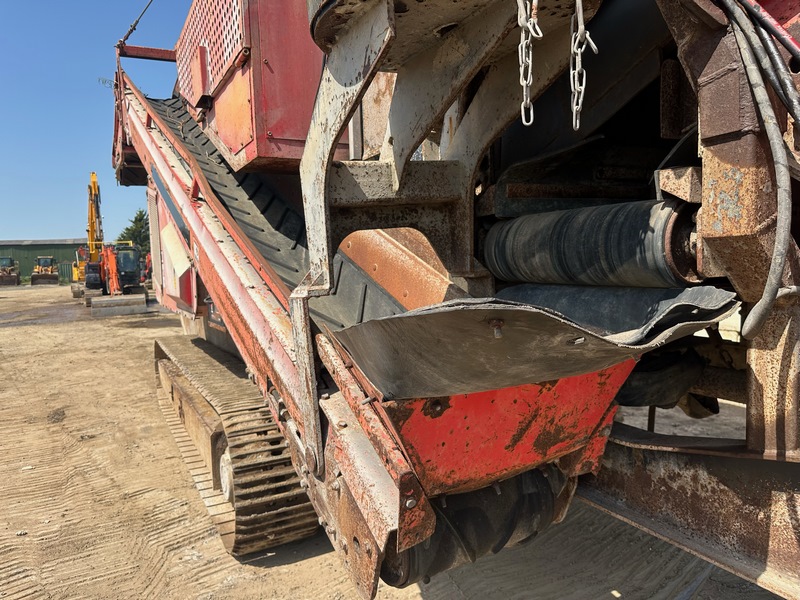

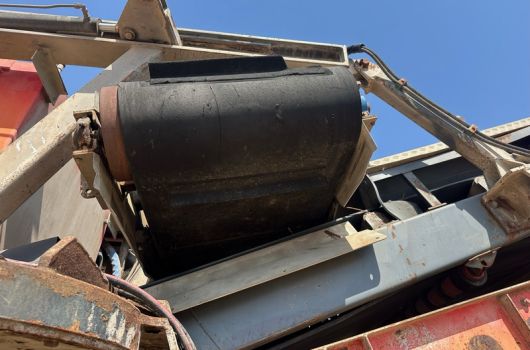

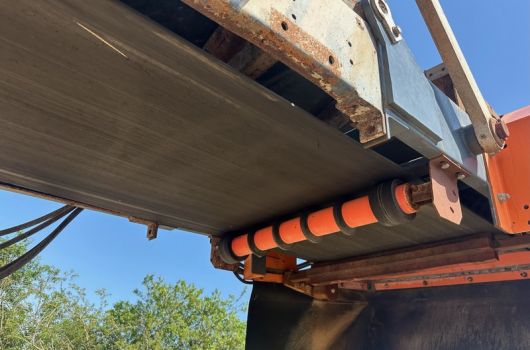

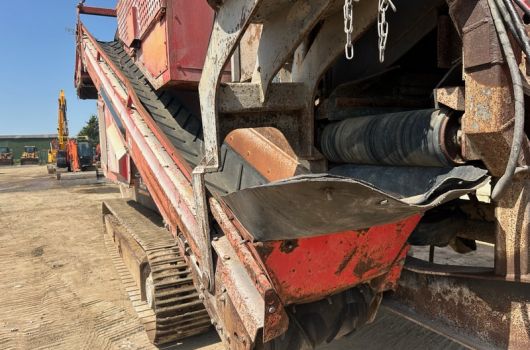

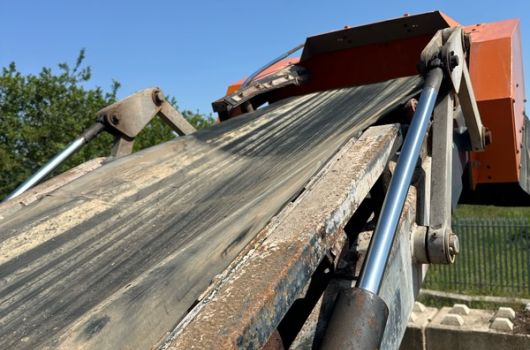

With the separate 2-deck pre-screening, the quality of the final product can be improved with the removal of wear-intensive fines, from platy particles and any impurities. On the lower deck, depending on the quality of the feed material, a wire screen grate can be used. The impact mill discharge with a discharge trough and a 1400-mm-wide crusher discharge belt prevents material building up under the rotor and the transfer points. As a result, the height of the material bed can be reduced. Especially in recycling, this has a positive consequence as iron components can be better picked up by the overbelt magnetic separator and removed.

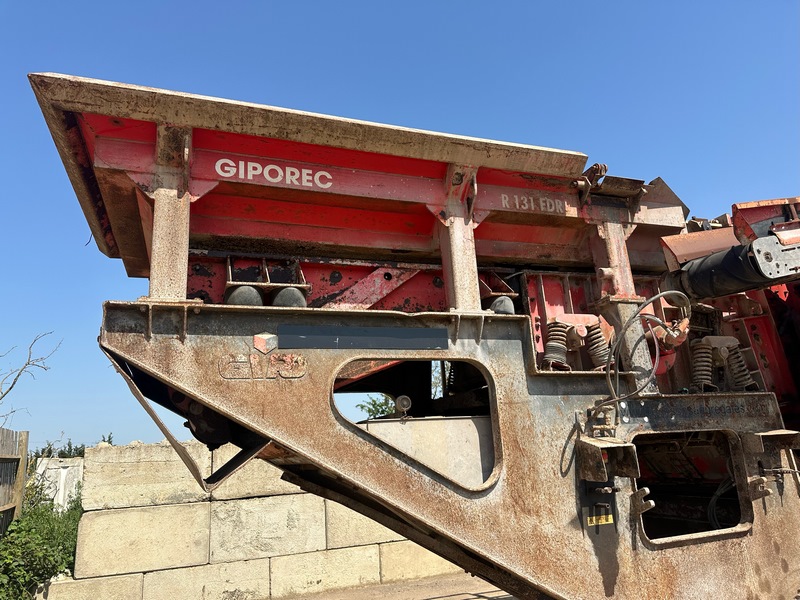

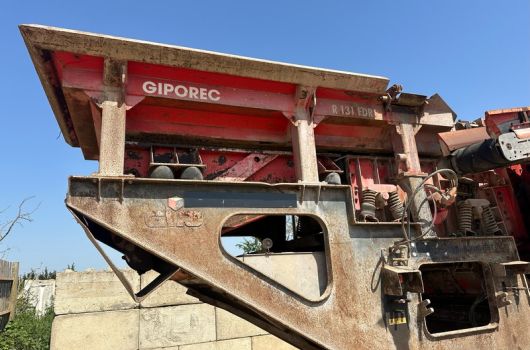

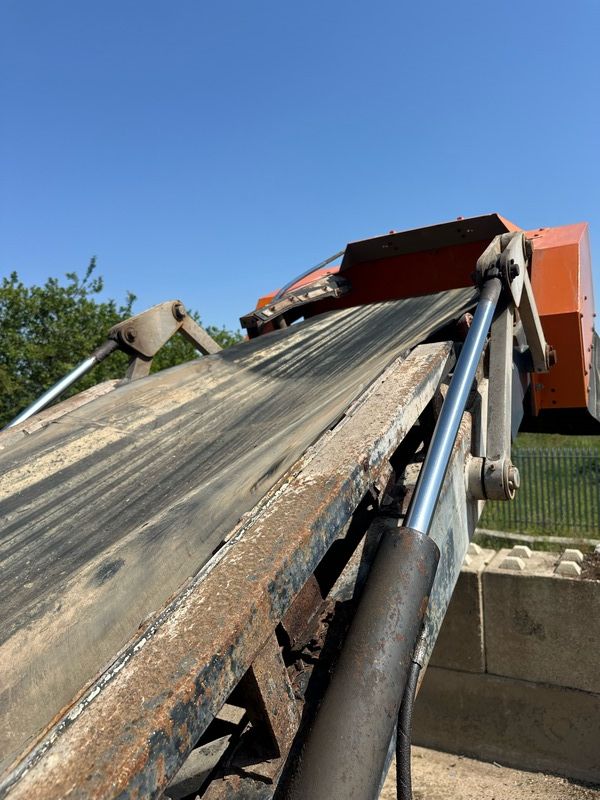

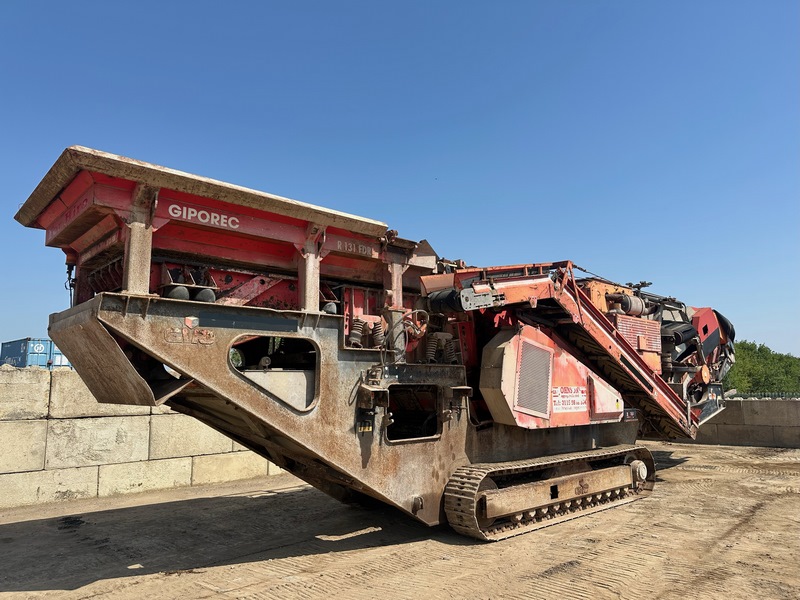

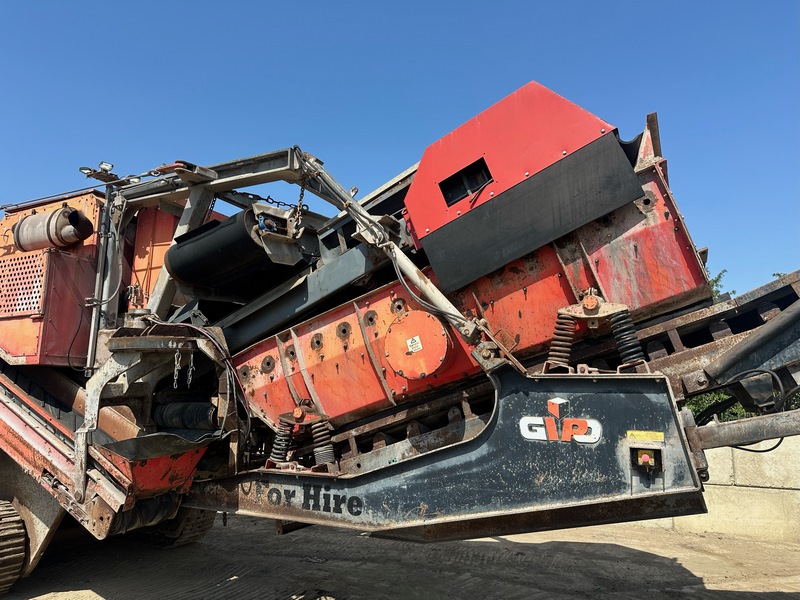

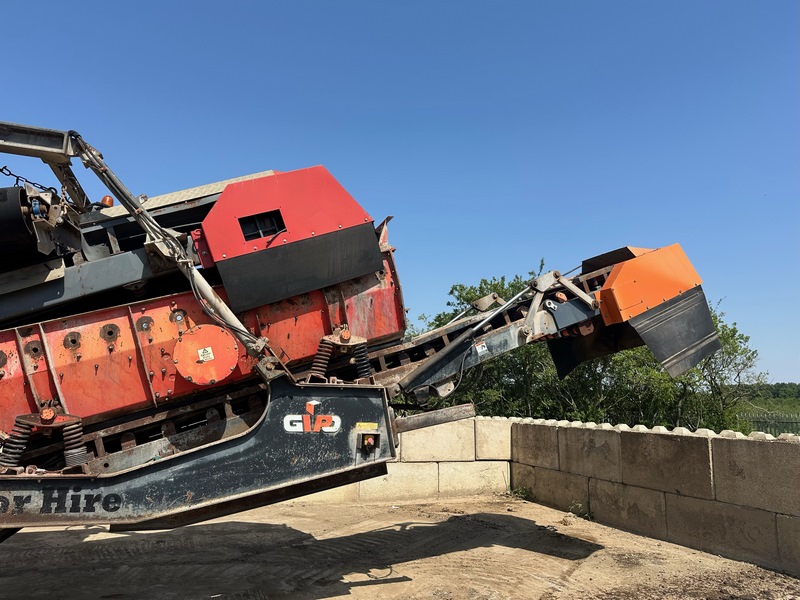

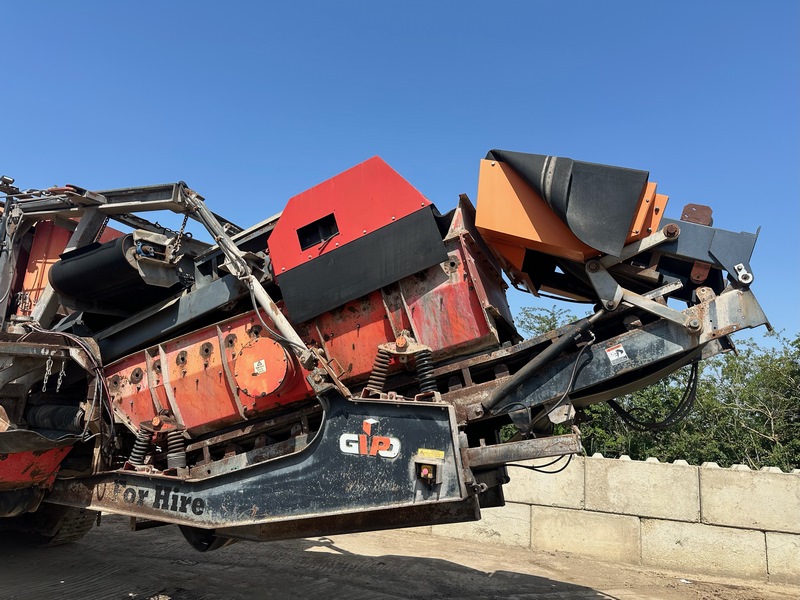

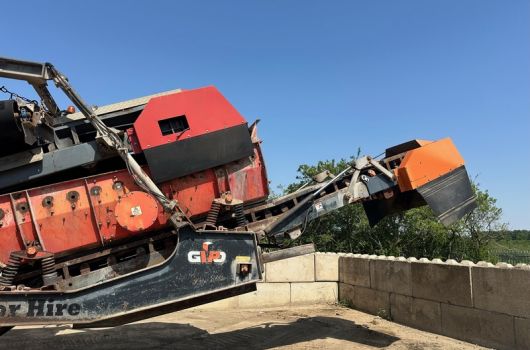

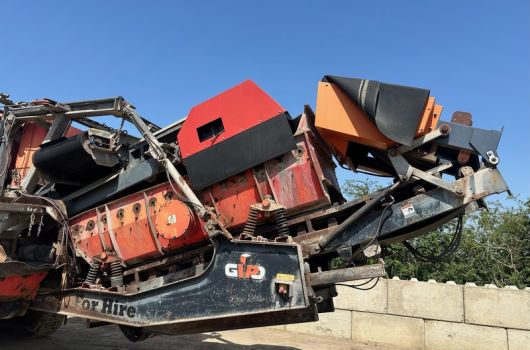

The crushed material is screened by the big screening machine with a screening area of ​​1500 x 5000 mm. The oversize can be discharged either at the side or recirculated to the feeder. The oversize recirculation conveyor belt can be slewed hydraulically by 180 degrees on a stable rotating console and can be used for stockpiling.

The easy connection and disconnection of the screen unit to the crusher is done with a hydraulic cylinder without an additional hoisting equipment. The screen unit is connected and disconnected in less than ten minutes. Thanks to the good accessibility, easy and fast change of the screening surface is possible. For crusher operation, the crushing and screening unit does not need additional supports. The plant can therefore be operated and moved without restrictions.
